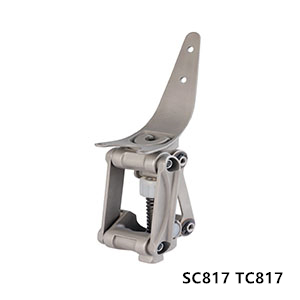

Modular knee joint for disarticulation, polycentric, with mechanical assist
Article No. | SC817 | TC817 |
Material | S.steel | Titanium |
Weight | 925g | 680g |
Max body weight | 100kg | 100kg |
The upper joint section with adjustment core and the lower joint section with pyramide are connceted to each other with anterior and posterior linkage bars.
The lamination anchor is the detachable connection to the socket. The stance phase stability is achieved through polycentric kinematics,Extension assist and axial friction are both adjustable.
Knee flexion angle: 110°.
